Discover the All-new STEEL PORTAL Range

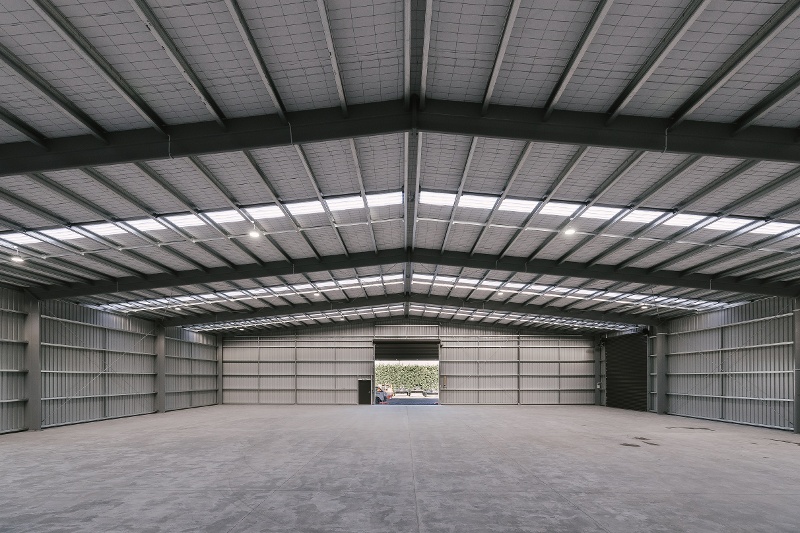

The Alpine team are excited to introduce the Steel Portal Range! These are large pre-designed structural steel sheds for rural properties, clear spanning up to 30m with 8m or 10m wide bays.

With the traditional timber pole & Alpine steel rafter designs having the capability to clearspan up to 21m with 6m bays as standard, the Steel Portal range takes size and scale to the next level! These are suited to agricultural and farm use, for the large-scale operator who has quality assets to be covered.

Cost Effective

Cost Efficient

Predesigned and value-engineered steel portal structure, with fixed pricing.

Large scale Kitset sheds

Large Scale

Suited to the large scale operator with big assets to cover.

Quick delivery kitset sheds

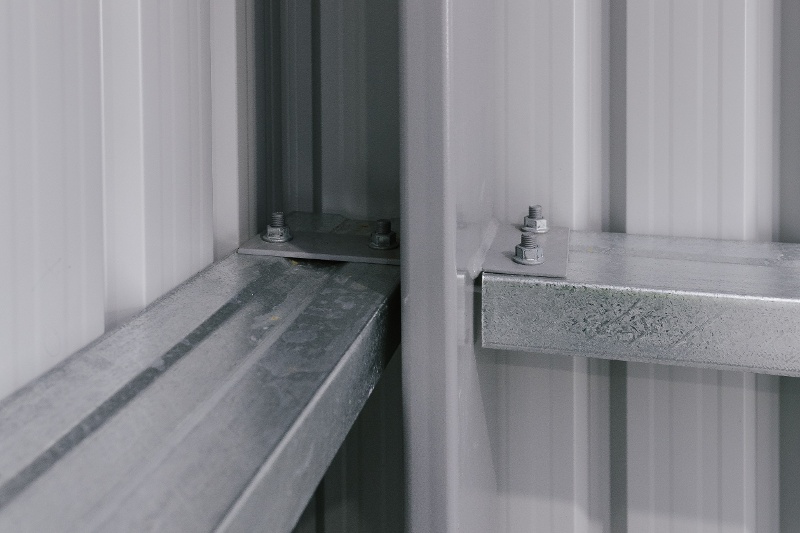

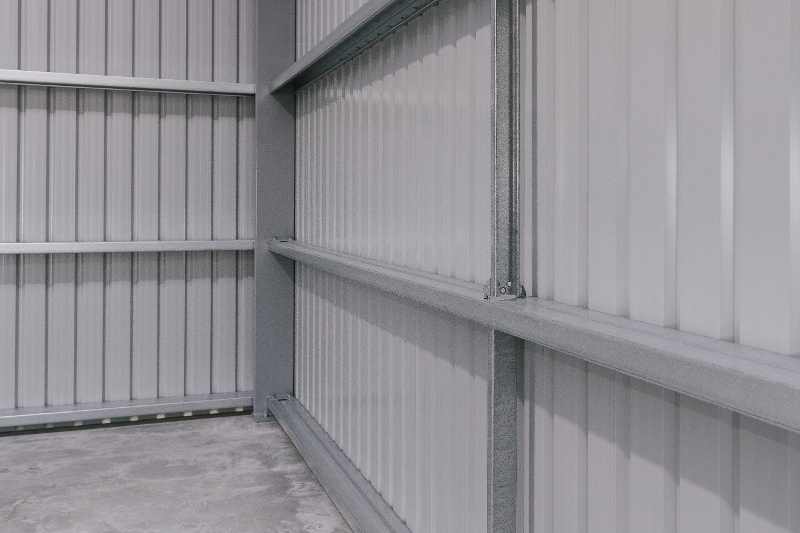

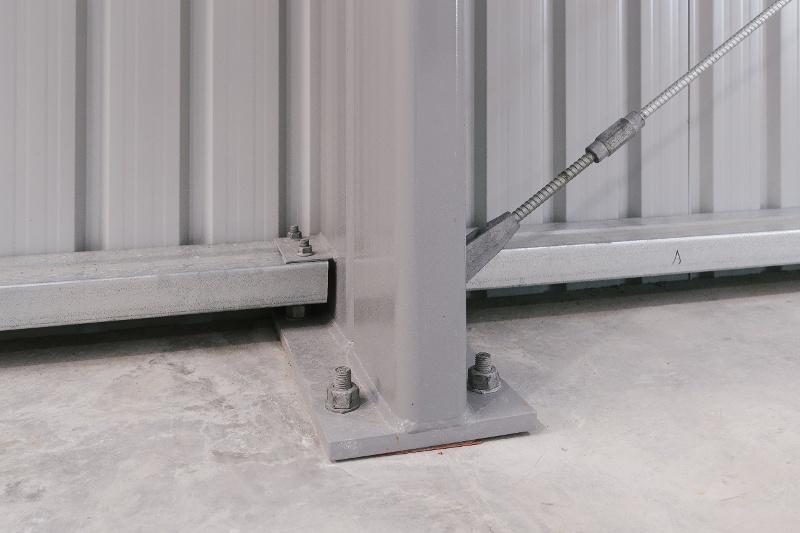

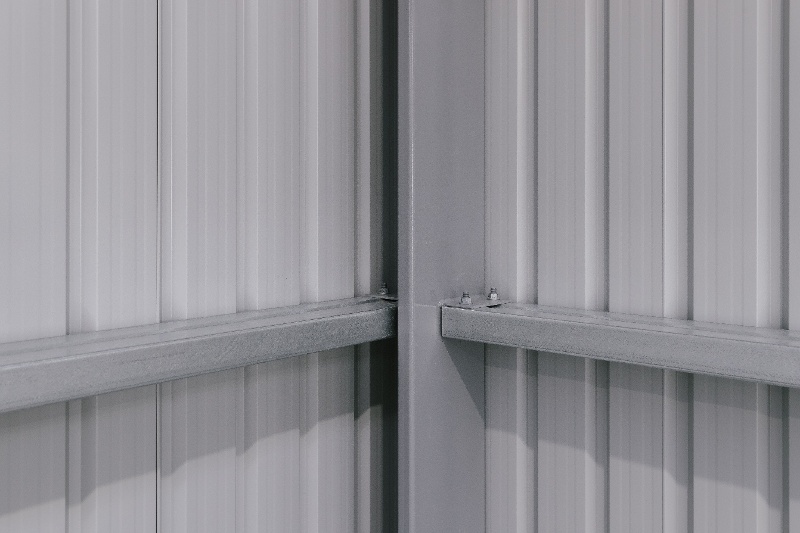

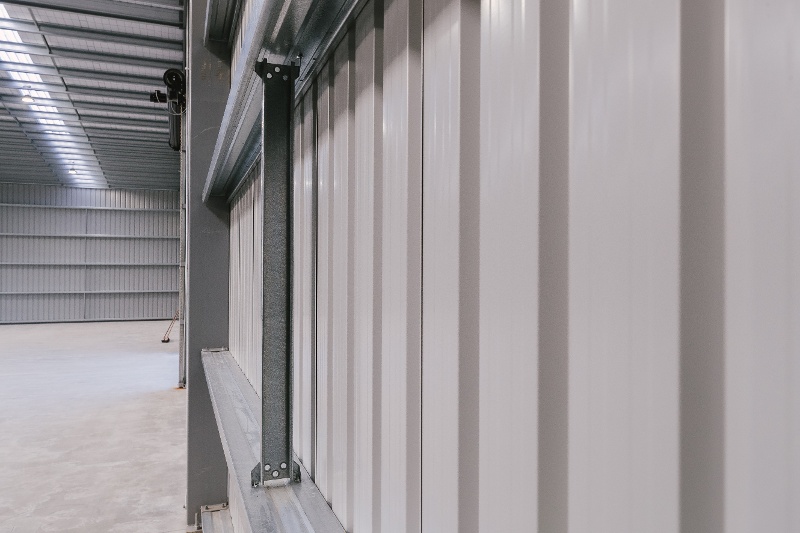

Welded & Bolted Connections

Using structural steel with bolted connections, making a solid structure that is fast & simple to build.

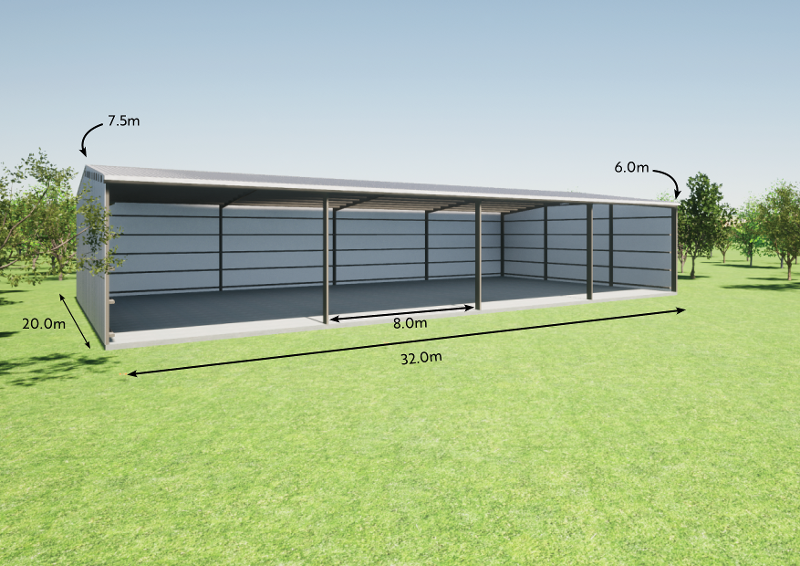

STEEL PORTAL RANGE Shed #1

Steel Portal Range shed #1

Specifications:
20.0m x 32.0m long.
4 x 8.0m wide bays.
6.0m up to 7.5m at the apex.
Zincalume 5-Rib on the roof, and Zincalume 5-Rib on three walls.

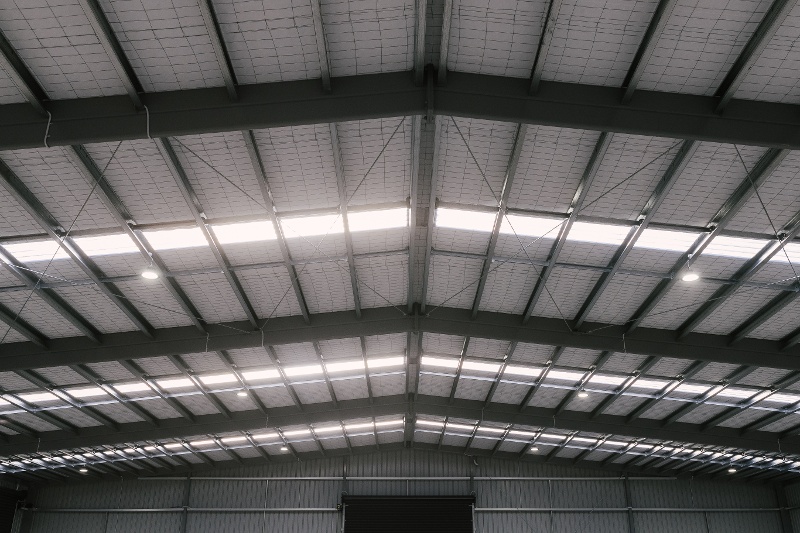

RHS Steel Portal legs & rafters.
Steel work has a paint finish.
Includes guttering and related roof & wall flashings.
Includes all bolts, hardware and relaxed fixings.
Standard C- Purlins. See the option below for birdproof purlins.
Alpine obtain a 50-year building consent for you, council charge not included
Delivered to site for North Island and South Island properties*

Special price: $244,990.00 + GST

  • Upgrade to have birdproof purlins in the roof, add: $12,820.00 + GST
  • Add another 8m bay from: $46,696.00 + GST
  • Upgrade to Coloursteel from: $15,950.00 + GST
Enquire now

Steel portal range Shed #2

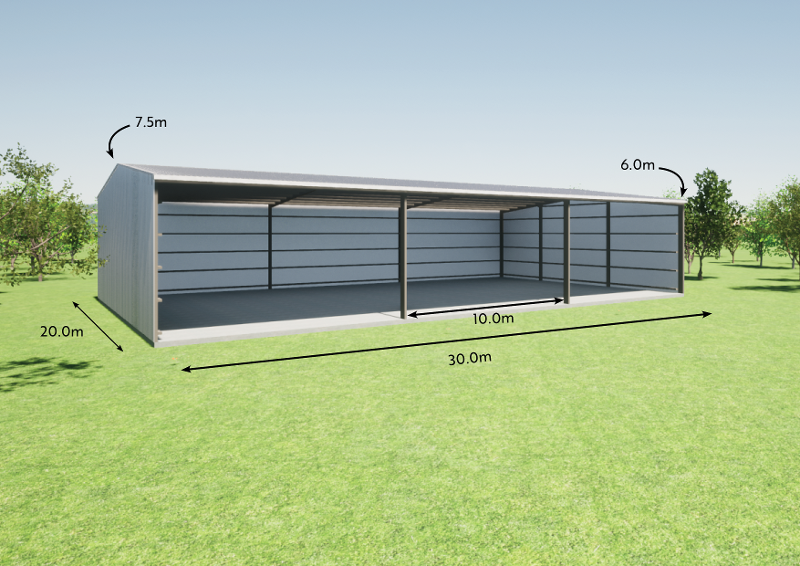

Steel Portal Range shed #2

Specifications:
20.0m x 30.0m long.
3 x 10.0m wide bays.
6.0m up to 7.5m at the apex.
Zincalume 5-Rib on the roof, and Zincalume 5-Rib on three walls.
RHS Steel Portal legs & rafters.
Steel work has a paint finish.
Includes guttering and related roof & wall flashings.
Includes all bolts, hardware and relaxed fixings.
Standard C- Purlins. See the option below for birdproof purlins.
Alpine obtain a 50-year building consent for you, council charge not included
Delivered to site for North Island and South Island properties*

Special price: $237,280.00 + GST

  • Upgrade to have birdproof purlins in the roof, add: $18,830.00 + GST
  • Add another 10m bay from: $63,697.00 + GST
  • Upgrade to Coloursteel from: $15,250.00 + GST

Enquire now

STEEL PORTAL RANGE Shed #3

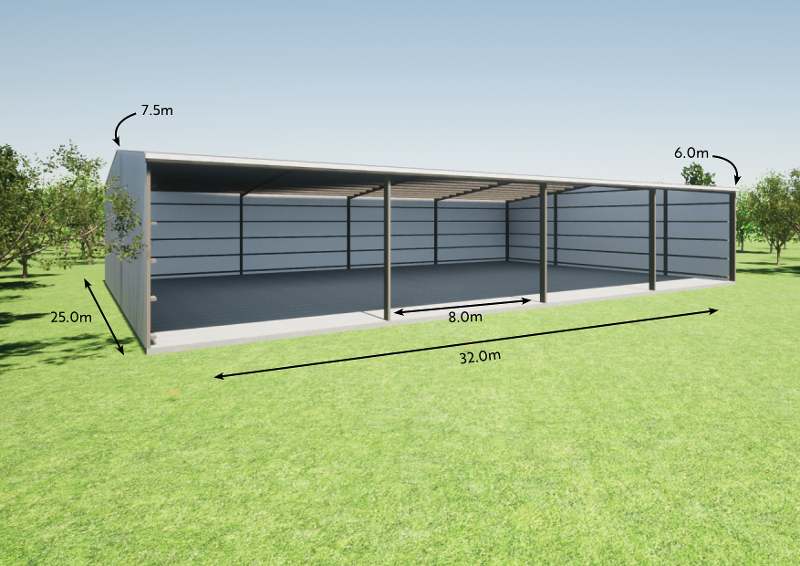

Steel Portal Range shed #3

Specifications:
25.0m x 32.0m long.
4 x 8.0m wide bays.
6.0m up to 7.5m at the apex.
Zincalume 5-Rib on the roof, and Zincalume 5-Rib on three walls.
RHS Steel Portal legs & rafters.
Steel work has a paint finish.
Includes guttering and related roof & wall flashings.
Includes all bolts, hardware and relaxed fixings.
Standard C- Purlins. See the option below for birdproof purlins.
Alpine obtain a 50-year building consent for you, council charge not included
Delivered to site for North Island and South Island properties*

Special price: $298,890 + GST

  • Upgrade to have birdproof purlins in the roof, add: $13,140.00 + GST
  • Add another 8m bay from: $58,460.00 + GST
  • Upgrade to Coloursteel from: $18,980.00 + GST

Enquire now

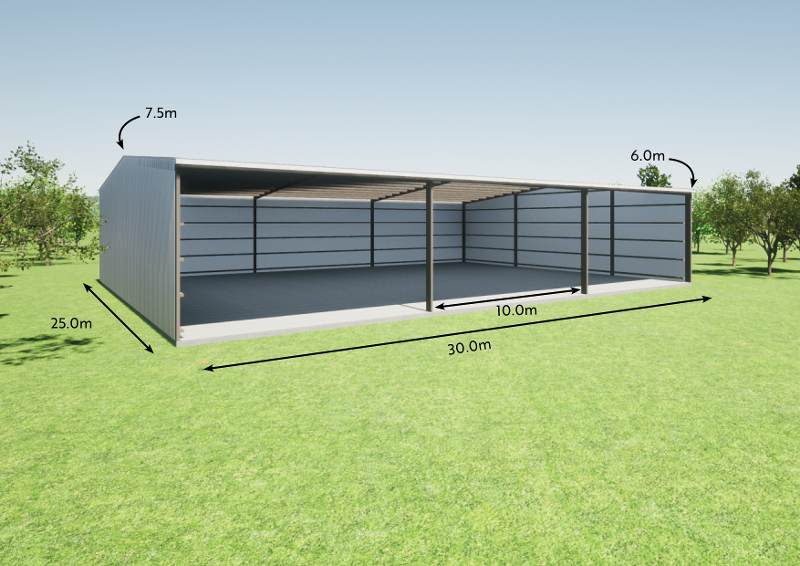

STEEL PORTAL RANGE Shed #4

Steel Portal Range shed #4

Specifications:
25.0m x 30.0m long.
3 x 10.0m wide bays.
6.0m up to 7.5m at the apex.
Zincalume 5-Rib on the roof, and Zincalume 5-Rib on three walls.
RHS Steel Portal legs & rafters.
Steel work has a paint finish.
Includes guttering and related roof & wall flashings.
Includes all bolts, hardware and relaxed fixings.
Standard C- Purlins. See the option below for birdproof purlins.
Alpine obtain a 50-year building consent for you, council charge not included
Delivered to site for North Island and South Island properties*

Special price: $272,850.00 + GST

  • Upgrade to have birdproof purlins in the roof, add: $31,670.00 + GST
  • Add another 10m bay from: $79,402.00 + GST
  • Upgrade to Coloursteel from: $18,110.00 + GST

Enquire now

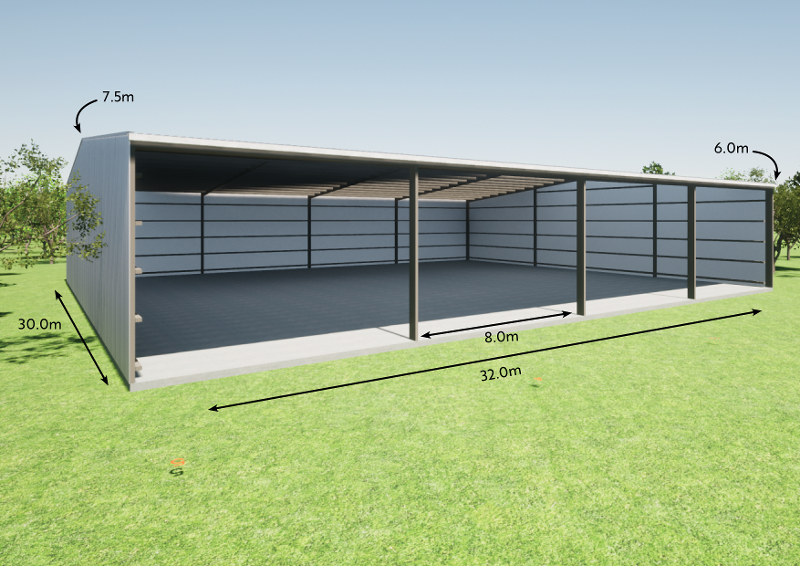

STEEL PORTAL RANGE Shed #5

Steel Portal Range shed #5

Specifications:
30.0m x 32.0m long.
4 x 8.0m wide bays.
6.0m up to 7.5m at the apex.
Zincalume 5-Rib on the roof, and Zincalume 5-Rib on three walls.
RHS Steel Portal legs & rafters.
Steel work has a paint finish.
Includes guttering and related roof & wall flashings.
Includes all bolts, hardware and relaxed fixings.
Standard C- Purlins. See the option below for birdproof purlins.
Alpine obtain a 50-year building consent for you, council charge not included
Delivered to site for North Island and South Island properties*

Special price: $343,360.00 + GST

  • Upgrade to have birdproof purlins in the roof, add: $22,820.00 + GST
  • Add another 8m bay from: $78,760.00 + GST
  • Upgrade to Coloursteel from: $21,960.00 + GST

Enquire now

STEEL PORTAL RANGE Shed #6

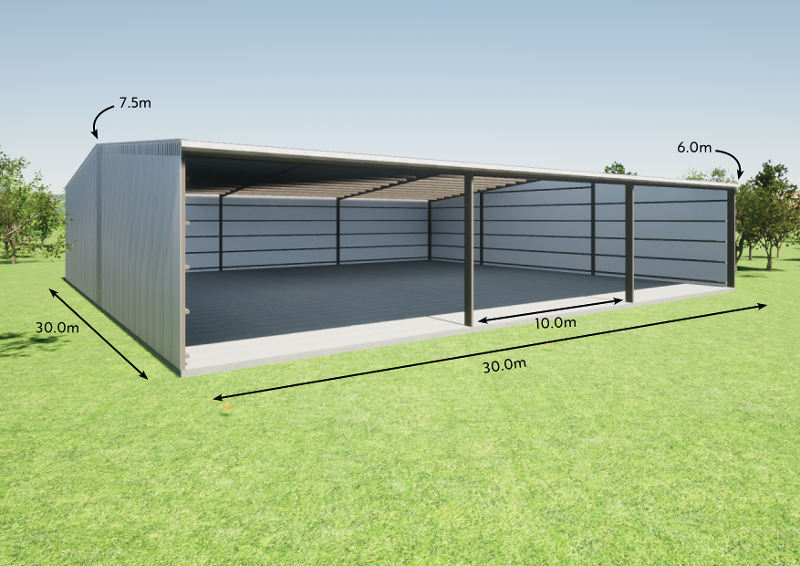

Steel Portal Range Shed #6

Specifications:
30.0m x 30.0m long.
3 x 10.0m wide bays.
6.0m up to 7.5m at the apex.
Zincalume 5-Rib on the roof, and Zincalume 5-Rib on three walls.
RHS Steel Portal legs & rafters.
Steel work has a paint finish.
Includes guttering and related roof & wall flashings.
Includes all bolts, hardware and relaxed fixings.
Standard C- Purlins. See the option below for birdproof purlins.
Alpine obtain a 50-year building consent for you, council charge not included
Delivered to site for North Island and South Island properties*

Special price: $327,860.00 + GST

  • Upgrade to have birdproof purlins in the roof, add: $35,410.00 + GST
  • Add another 10m bay from: $82,960.00 + GST
  • Upgrade to Coloursteel from: $20,970.00 + GST

Enquire now

More information

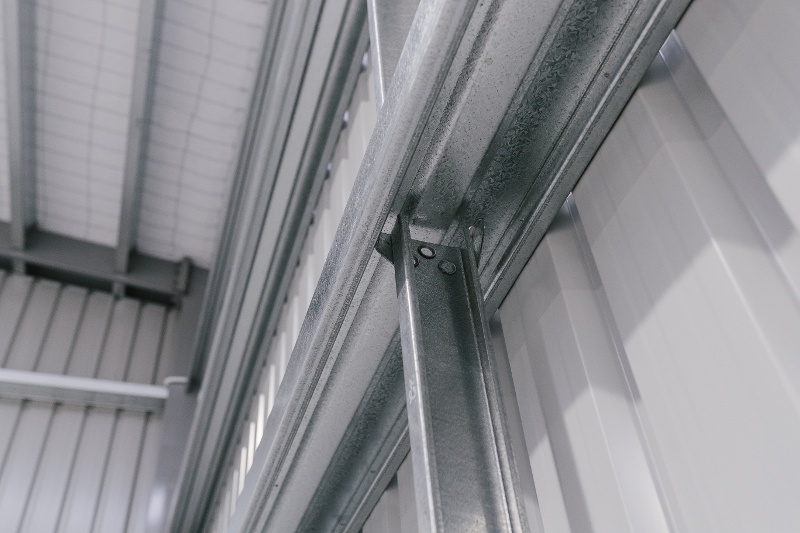

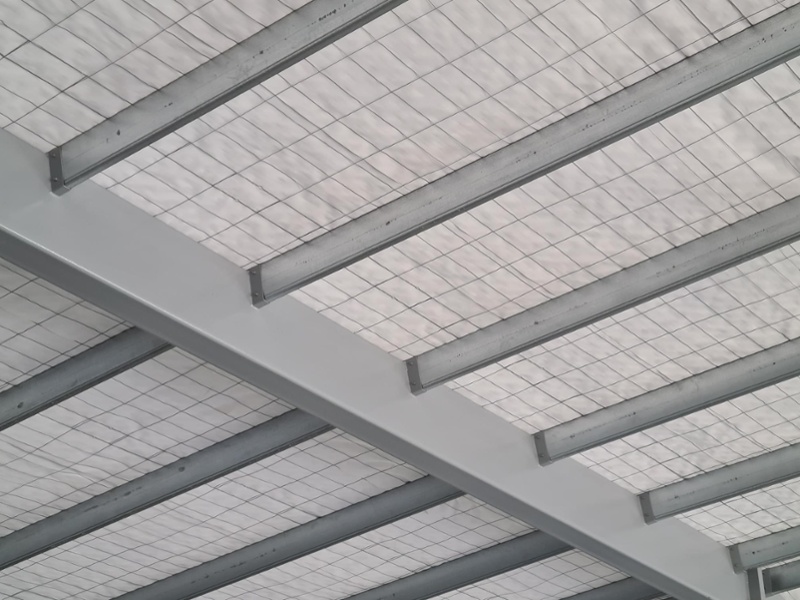

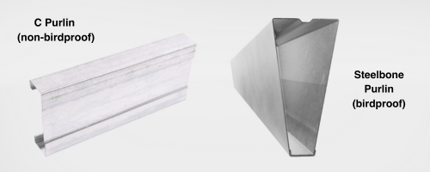

These sheds are priced as standard C-purlins, which are typical in large steel sheds and can be prone to birds nesting. There is an option to upgrade to Steel Bone birdproof purlins to help eliminate birds roosting in the roof space.



Birdproof vs non birdproof purlin designs



Everything except the concrete and related materials. All sheds come with barge flashings, guttering and downpipes, all fixings, and a detailed set of plans making the installation easy.

  • Commercial or industrial land sites.
  • Habitable use.

Submit your site address or use it to check suitability.

These sheds are predesigned in-stock kitsets. You can add as many bays as you like for additional cost (please find costings for this on each design).

If you are upgrading the coloursteel cladding, you can choose any colour from the range - click here to view.

If you require a shed with lock-up bays, doors, or something a little different, submit your request here.

Once you have decided which design is best for you, simply click "enquire now". From here, you can submit all your details to either receive a contract or choose to discuss your project further with the team.

We can hold the price and product for up to 6 months from the date of your initial deposit being received.

The standard Alpine shed design uses timber poles, an Alpine clearspan steel rafter with timber purlins and girts for framing. These have the capability to clear-span up to 21m with 6m bays as standard.

With the structural Steel Portal range, this is an all steel design, enabling larger spans and wider bays to maximise space.

These particular sheds have been value-engineered for rural projects. Commercial or industrial land projects have a different set of regulations, which these are not designed for. Submit your site address here to check if your site is suitable for these.

These plans are predesigned at efficient sizes and heights, however, if you do require an alternative height, contact the team here to discuss your options.

All sheds are designed for very high wind ratings and 1kpa snow zones. If you would like us to check your site location for suitability, submit your site details here for confirmation.

Please note these sheds are not designed for areas close to the sea, prone to salt spray, or other corrosive environments.

These particular sheds have been value engineered for rural projects. Commercial or Industrial land projects have a different set of regulations, which XL Structural are set up for. These sheds are not designed as standard for having office blocks incorporated.

Alpine will lodge the building consent on your behalf and deal with any queries from the council.

This excludes council consent fee, which is passed on to you.

Alpine will send a Building Consent Requirement form to you along with the contract, this is a one-page document that will give us some site-specific details so we can lodge the consent.

If you do need a builder, reach out to the team and we can put you in touch with a contact from our database. A lot of clients will put these sheds up themselves or with help from a builder friend.

  • The shed is designed as a shell-only shed to importance level 1, not as a commercial/Habitable building.
  • Free delivery NZ wide, based on you providing forks to unload.
  • All prices + GST.
  • The cladding material is standard 0.4 gauge.

A full list of terms and conditions will be included in your contract.
